Nguồn gốc:
Thâm Quyến, Trung Quốc
Hàng hiệu:
Polcd
Chứng nhận:
RoHS, ISO9001
Số mô hình:
P028B126-IPS
Liên hệ chúng tôi
video
video
video
video

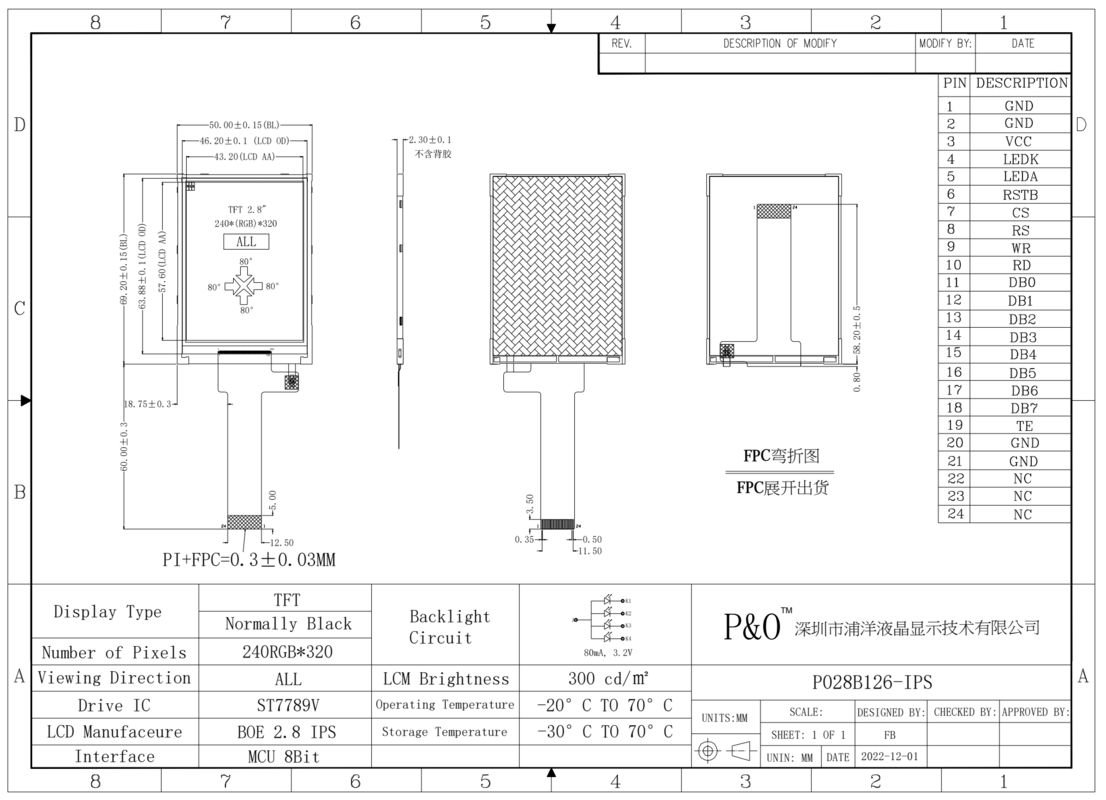

Parameter:
| Item | Specification |
| Model | P028B126-IPS |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 43.20(H)x57.60(V) |
| Pixel pitch | 0.180(H)x0.180(V)mm |
| Pins | 24 pins |
| Outline Dimension | 50.00x69.20x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1200:1 |
| Surface treatment | -- |
| Interface | MCU 8bit |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
There are several medical devices that use 2.8 inch TFT LCDs with RTP, including:
Handheld Patient Monitors: These devices are used for monitoring vital signs such as blood pressure, heart rate, and oxygen saturation. A 2.8 inch TFT LCD with RTP can provide a clear display of the patient's vital signs, and the touch panel can be used to input data and adjust settings.
Portable Ultrasound Machines: These devices are used for imaging internal organs and tissues. A 2.8 inch TFT LCD with RTP can provide a clear display of the ultrasound image, and the touch panel can be used to adjust settings and perform measurements.
Portable ECG Monitors: These devices are used for recording and analyzing the electrical activity of the heart. A 2.8 inch TFT LCD with RTP can display the ECG waveform and allow the user to input patient information and adjust settings.
Handheld Pulse Oximeters: These devices are used for measuring the oxygen saturation of the blood. A 2.8 inch TFT LCD with RTP can display the oxygen saturation level and pulse rate, and the touch panel can be used to input patient information and adjust settings.
Portable Blood Glucose Meters: These devices are used for measuring blood glucose levels in diabetic patients. A 2.8 inch TFT LCD with RTP can display the glucose level and allow the user to input patient information and adjust settings.
