Description:
2.31 inch TFT LCD (Thin-Film Transistor Liquid Crystal Display) refers to a small LCD display screen that measures 2.31 inches diagonally and uses thin-film transistor technology to control the liquid crystal display. It typically has a resolution of 240x320 pixels and the ability to display up to 262,144 colors. The screen may also include a capacitive touch panel for user input and interaction. This type of display technology is commonly used in various applications where a small, high-quality display with touch input is required, such as handheld devices, smartwatches, and medical devices.
Parameter:
|
Model |
P023H022 |
|
Screen Size |
2.31 inch |
|
Number of Pixel |
320RGB(H)x240(V) |
|
Display area |
46.75(H)x35.06(V)mm |
|
Pixel pitch |
0.1461(H)x0.1461(V)mm |
|
Pins |
40 pins |
|

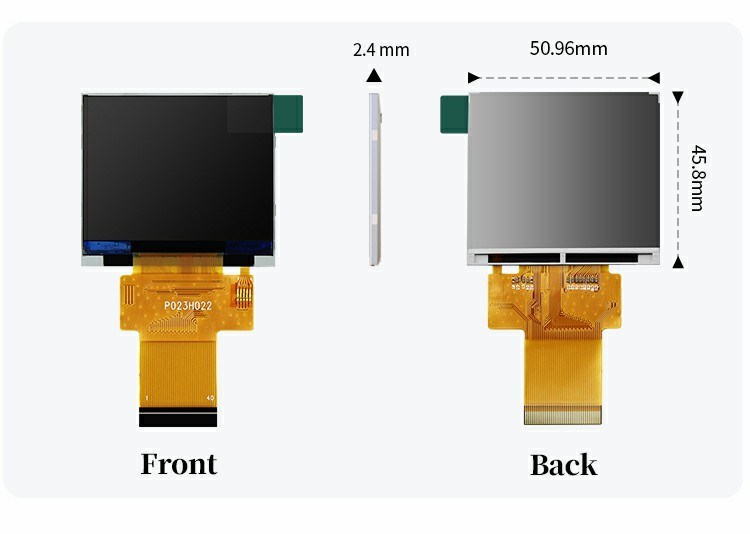

Outline Dimension |
50.96x45.80x2.40mm |
|
Pixel arrangement |
RGB Vertical Stripe |
|
Display mode |
Normally White |
|
Viewing Direction(eye) |
6 0'CLOCK |
|
Display Color |
262K |
|
Luminance(cd/m2) |
300 nit |
|
Contrast Ratio |
600:1 |
|
Interface |
RGB 18BIT |
|
Back-light |
LED Side-light type |
|
Drive IC |
ILI9342C |
|
Operation Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
