Nguồn gốc:
Thâm Quyến, Trung Quốc
Hàng hiệu:
Polcd
Chứng nhận:
RoHS, ISO9001
Số mô hình:
P070C012-CTP
Liên hệ chúng tôi
video
video
Description:

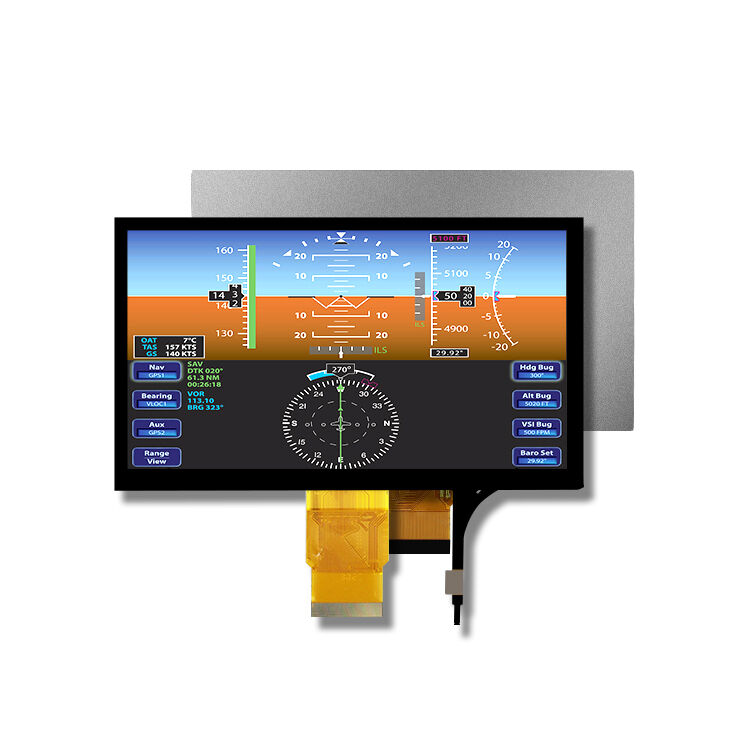

7.0-inch TFT LCD is a high-quality display screen commonly used in portable electronic devices such as smartphones, tablets, and handheld gaming devices. It offers a clear and sharp visual display with vibrant colors, making it an ideal choice for a wide range of applications.

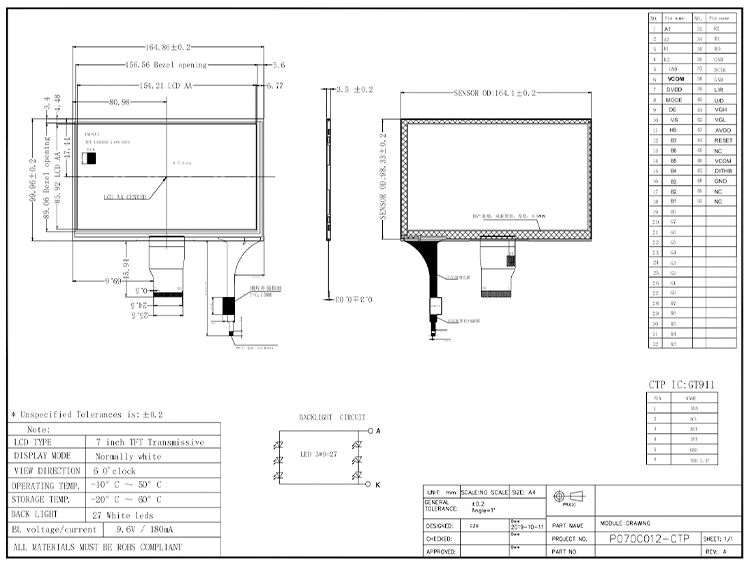

| Model | P070C012-CTP |
| Screen Size | 7 inch |
| Number of Pixel | 800RGB(H)x480(V) |
| PIN | 50 pin |
| Display area | 154.21(H)x85.92(V)mm |
| Pixel pitch | 0.0641(H)x0.1784(V)mm |
| Outline Dimension | 164.86x99.96x6.00mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 6 o'clock |
| Display Color | 262k |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 500:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| Drive IC | 1*EK9716BD4 + 1*EK73002AB2 |
| Operation Temperature | -20~70 ℃ |
| Storage Temperature | -30~80 ℃ |
